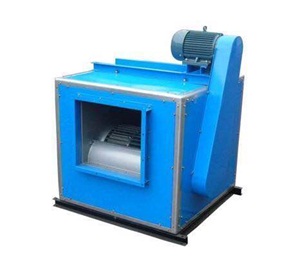

廚房油煙排放設備主要包括抽油煙機、油煙凈化器、風機、風箱、控制箱、排煙管等，其覆蓋面積大于灶臺面積，為了更好的使用相關設備，下面小編為您講解下濟南廚房排煙設備安裝的基本常識吧。

Kitchen lampblack emission equipment mainly includes range hood, lampblack purifier, fan, bellows, control box, smoke exhaust pipe, etc. Its coverage area is larger than the area of the stove. In order to better use the relevant equipment, the following brief section will explain the basic knowledge of the installation of smoke exhaust equipment in Jinan kitchen.

1、廚房抽油煙機出風口擺放位置正確，外露部位整齊。保溫釘粘貼前，風管墻上的灰塵和油污，分別在風管和保溫釘上涂膠水，稍干后粘貼。保溫釘?shù)拿芏葹?2根/m2。

1. The air outlet of kitchen range hood shall be placed correctly and the exposed parts shall be neat. Before pasting the insulation nails, remove the dust and oil stain on the air duct wall, apply glue on the air duct and insulation nails respectively, and paste them after they are slightly dry. The density of insulation nails is 12 pieces/m2.

2、懸掛支架、規格、間隔須符合設計要求，拉桿不得安裝在噴嘴閥上。管道線束要牢固，升降和轉向位置須符合設計要求。總成須安裝在正確方向，便于操作，防火閥檢修口應便于操作。

2. The suspension bracket, specification and spacing must meet the design requirements, and the pull rod shall not be installed on the nozzle valve. The pipe harness shall be firm, and the lifting and turning positions shall meet the design requirements. The assembly must be installed in the correct direction for easy operation, and the fire damper access hole should be easy to operate.

3、630mm以下新建風管采用非蘭管連接方式，采用非蘭管加工而成。不能連蘭的風管接口采用機械加工，尺寸準確，形狀規整，接口狹窄，用鑲條法蘭連接鑲條，采用0.8mm鍍鋅鋼板。插入條兩端在兩個平面各壓接20mm，安裝導管時連接插入條和導管；吊導管時，請使用聚合物密封劑進行密封。

3. The new air duct below 630 mm is connected by non blue pipe, which is processed by non blue pipe. The interface of the air duct that cannot be connected to the flange shall be machined, with accurate size, regular shape and narrow interface. The strip flange shall be used to connect the strip, and 0.8mm galvanized steel plate shall be used. Both ends of the insertion strip shall be crimped 20mm on two planes respectively, and the insertion strip and the conduit shall be connected when installing the conduit; When lifting the conduit, use polymer sealant for sealing.

4、漏光法應采用強光穿透力小孔，檢查系統風道密封性，使用一定強度的光源。帶保護套和其他低壓光源的100W低壓低壓照明。低壓管道每根不超過2個，100m接頭平均不超過16個，中壓系統每10m不超過1個，100m接頭平均不超過8個，均為輕型漏光。如果在測試中發現狹縫狀漏光，須立即密封。

4. The light leakage method shall use strong light penetration holes to check the tightness of the system air duct, and use a light source with a certain intensity. 100W low-voltage low-voltage lighting with protective sleeve and other low-voltage light sources. There shall be no more than 2 low-pressure pipes, no more than 16 100 m joints on average, no more than 1 medium pressure system every 10 m, and no more than 8 100 m joints on average, all of which are light light leaks. If a slit light leak is found during the test, it must be sealed immediately.

5、漏風量測量須使用合格的專用測量儀器，或配置符合現行標準(流量測量調節裝置)測量項目的測量裝置。燃氣泄漏試驗裝置可采用燃氣管式或氣室式。風管式試驗機以孔板為計量要素，氣室式試驗機以噴嘴為計量要素，實測值和設計規定值10%為合格。

5. The air leakage measurement must use qualified special measuring instruments, or be equipped with measuring devices that meet the current national standards (flow measurement and regulation devices). The gas leakage test device can be of the gas pipe type or the gas chamber type. The orifice plate is the measuring element of the air duct type testing machine, and the nozzle is the measuring element of the air chamber type testing machine. 10% of the measured value and the design specified value are qualified.

廚房排煙設備安裝的基本常識就介紹到這里了。相信大家讀完這篇文章后，會對廚房排煙有更好的認識。但愿以上內容對大家有所幫助，建議大家定期保養這些排煙設備，以盡量延長其使用壽命。更多事項就來我們網站http://m.jj-0523.cn咨詢吧！

So much for the basic knowledge of kitchen smoke exhaust equipment installation. I believe you will have a better understanding of kitchen smoke after reading this article. I hope the above information will be helpful to you. We suggest that you maintain these smoke exhaust devices regularly to prolong their service life as much as possible. Come to our website for more information http://m.jj-0523.cn Consult!
